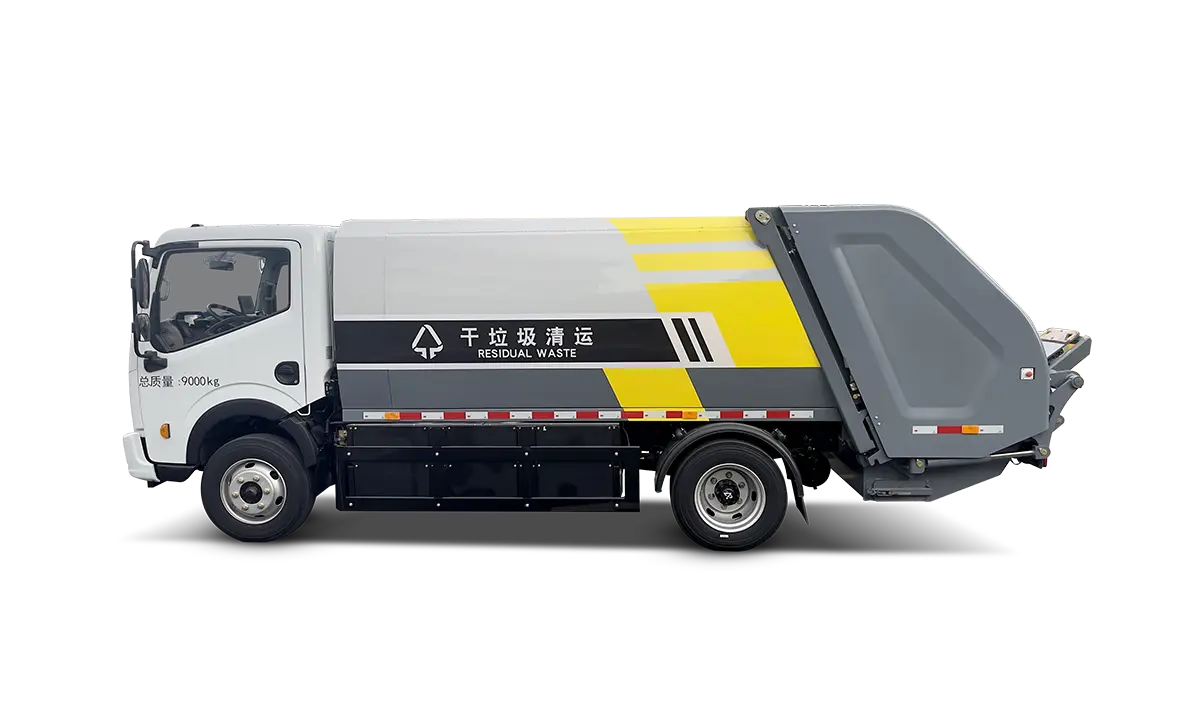

10 Ton Electric Compression Garbage Truck – Waste Collection & Transfer Vehicle

The 10T Electric Compression Garbage Truck is a smart, zero-emission sanitation vehicle engineered for efficient collection, compression, and transfer of household waste in modern urban environments. Designed for use in residential neighborhoods, schools, government compounds, commercial streets, and narrow urban villages, this compact yet powerful truck combines advanced compression technology with environmental sustainability.

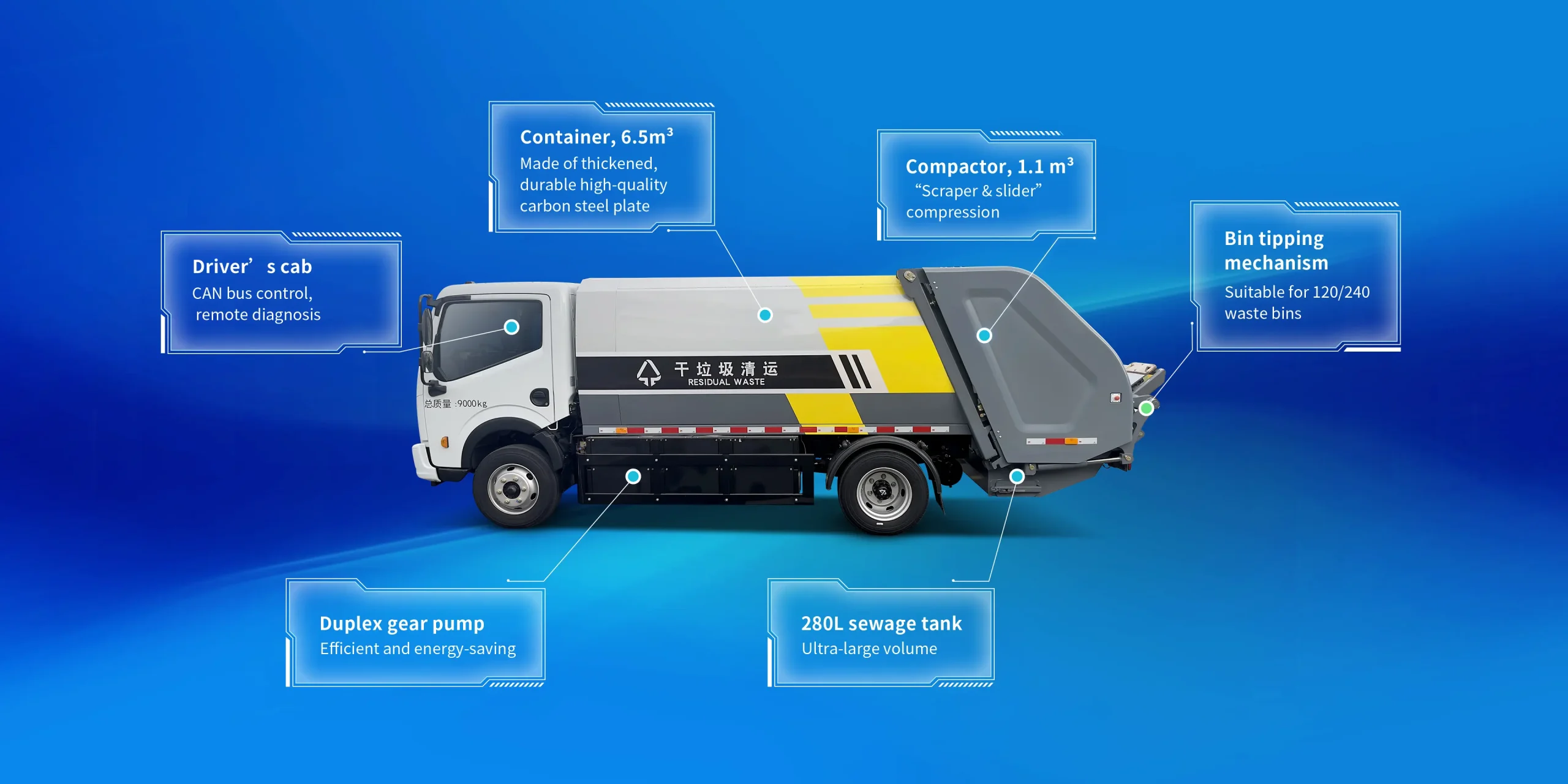

Featuring a 6.5 m³ effective container volume, the vehicle utilizes bi-directional compression technology to achieve a high compression ratio, significantly increasing waste loading capacity while reducing transport frequency and operational costs. The system completes a full compression cycle in ≤10 seconds and a feeding cycle in ≤7 seconds, enabling rapid, continuous operation during peak collection hours.

Key features include:

• Leak-proof design with adjustable sealing locking devices and integrated water channels to prevent sewage leakage and secondary pollution
• Compact layout with short wheelbase for excellent maneuverability on narrow roads (e.g., urban villages)
• Synchronized compression and feeding cycles that operate without interference, boosting overall efficiency
• Powered by a 92 kW rated / 150 kW peak permanent magnet synchronous motor (400/800 N·m torque) and a CATL 162.28 kWh lithium iron phosphate battery, delivering 300 km of driving range (equivalent speed method)
• Built on a reliable Dongfeng chassis, with overall dimensions of 6,780 × 1,980 × 2,370 mm and a curb weight of 6,555 kg
