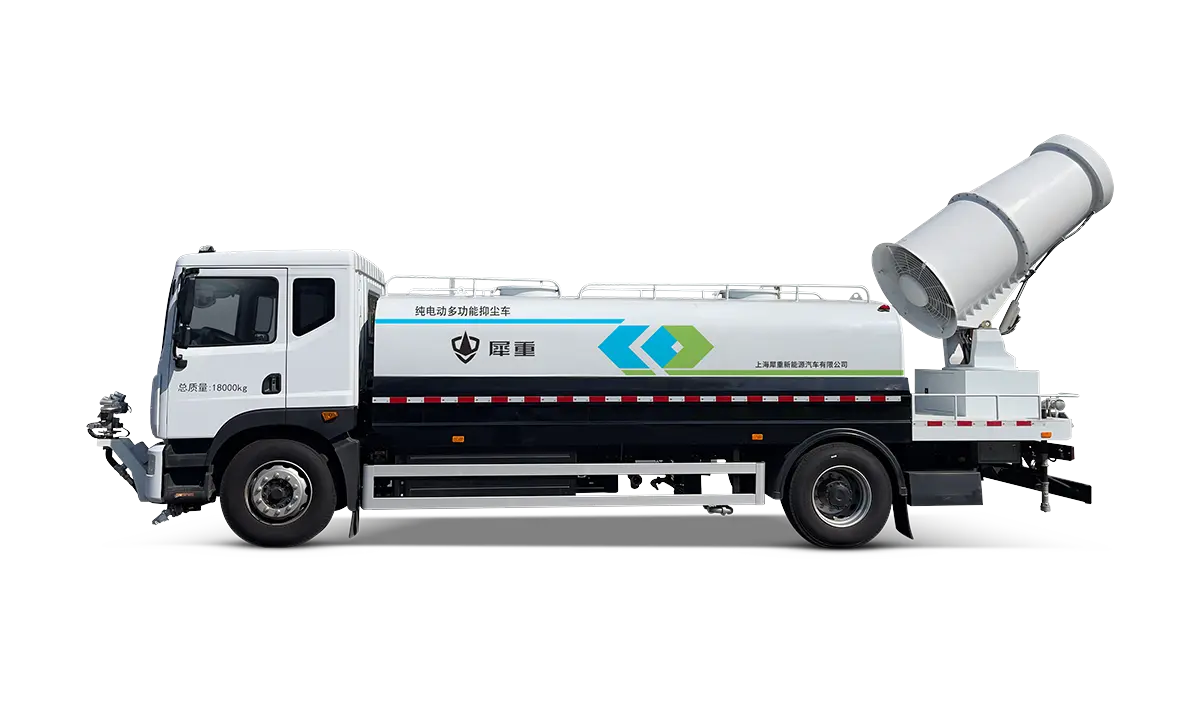

18 Ton Electric Dust Suppression Vehicle – Fog Cannon Truck for Construction Site
18-ton new energy dust suppression truck with 100m+ fog cannon range, ≥14m sprinkling width, 7.84m³ water tank, and remote-controlled operation—ideal for construction sites, coal site.
18 Ton Electric Dust Suppression Vehicle – Fog Cannon Truck for Construction Site
Vehicle parameter
Length x Width x Height (mm)
8890,11260×2520×3550,3650
Maximum/curb weight (kg)
18000/9975,10375,10900
Chassis brand
Dongfeng
Operating ability
Water tank volume (m³)
7.84/6.9
Sprinkling width (m)
≥14
Operating time (h)
≥8
Fog cannon range (m)
≥100
Vehicle performance
Maximum gradient
≥20%
Endurance mileage (km)
350/450(equivalent speed method)
Power system
Motor rated/peak power (kW)
120/200; 115/230(optional 255.48kWh)
Motor rated/peak torque (N·m)
1000/2400; 500/1200(optional 255.48kWh)
Battery brand/capacity (kWh)
CATL/255.48,300.8
The 18T Electric Multi-Functional Dust Suppression Vehicle is a high-efficiency, zero-emission solution engineered to combat airborne particulate matter (PM10/PM2.5) in high-dust environments. Equipped with an air-driven electric fog cannon capable of ≥100 meters spray range, this advanced vehicle delivers powerful, wide-area mist coverage for effective dust suppression across urban roads, highways, bridges, tunnels, airports, docks, residential zones, construction sites, factories, and coal storage yards.
Powered by a high-performance electric drive system (120 kW rated / 200 kW peak power; optional 115/230 kW configuration) and a CATL 255.48 kWh or 300.8 kWh lithium iron phosphate battery, the vehicle offers up to 8 hours of continuous operation and a driving range of 350–450 km (equivalent speed method). Its 7.84 m³ (or 6.9 m³) water tank ensures extended mission capability without frequent refills.

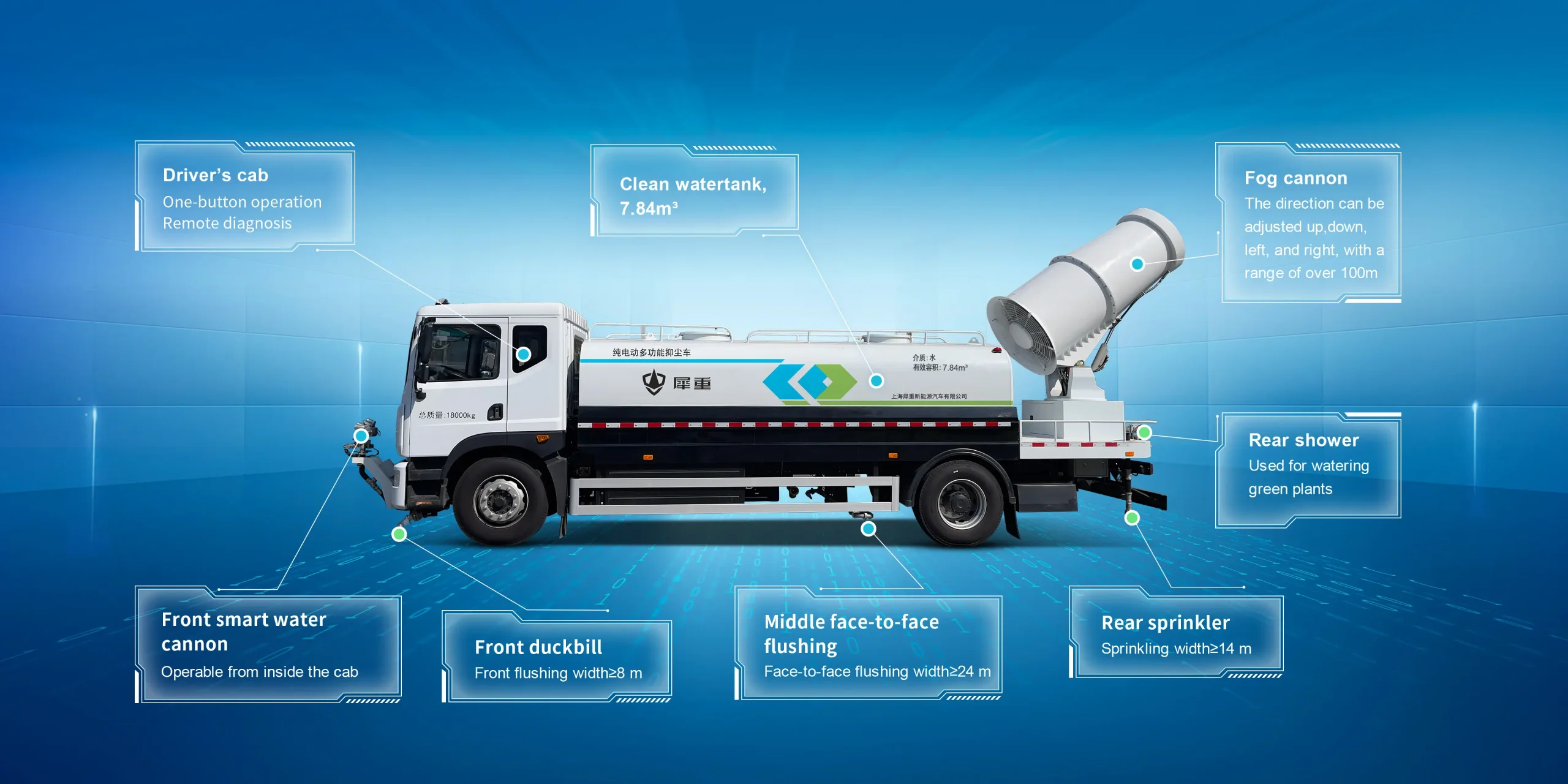

Key technological advantages include:
Double water ring sprayer design with independent flow control (0–200 L/min) for precise water usage
Fog cannon with ±90° horizontal rotation and –10° to +55° vertical tilt, fully operable via remote control from a safe distance
Low-pressure cleaning system controlled directly from the cab—no need for ground personnel
High-efficiency axial magnetic field motor directly drives the water pump and fan, reducing energy loss and improving overall efficiency
Three-speed controllable motor for the low-pressure system, allowing real-time adjustment based on road conditions to avoid power waste
Type
Left and Right Hand Drive
Technical Custom
Available
Standard
China, Euro, US
