| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | Dongfeng:8500,7610, 8230×2520×2900,2770,2840/Shaanxi Automobile:8710,8510,7850,7650×2550×3075 |
| Maximum/curb weight (kg) | Dongfeng:18000/8470, 8815, 8940,9220/Shaanxi Automobile:18000/9220,8815 |
| Chassis brand | Dongfeng/Shaanxi Automobile |
| Operating ability | |
|---|---|
| Face-to-face flushing width (m) | ≥24 |
| Cleaning width (m) | ≥3.8 |
| Sprinkling width (m) | ≥16 |
| Effective volume of the water tank (m³) | 8.85/8.58 |
| Vehicle performance | |
|---|---|
| Maximum gradient | Dongfeng：≥17%/Shaanxi Automobile：≥20% |
| Endurance mileage (km) | Dongfeng/CATL：280/350(equivalent speed method)/Dongfeng/EVE：280/365(equivalent speed method)/Shaanxi Automobile/CATL：210(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 120/200 |
| Motor rated/peak torque (N·m) | 1000/2400 |
| Battery brand/capacity (kWh) | Dongfeng/CATL：200.54,255.48/Dongfeng/EVE：198.45,242.88/Shaanxi Automobile/CATL：210.56 |

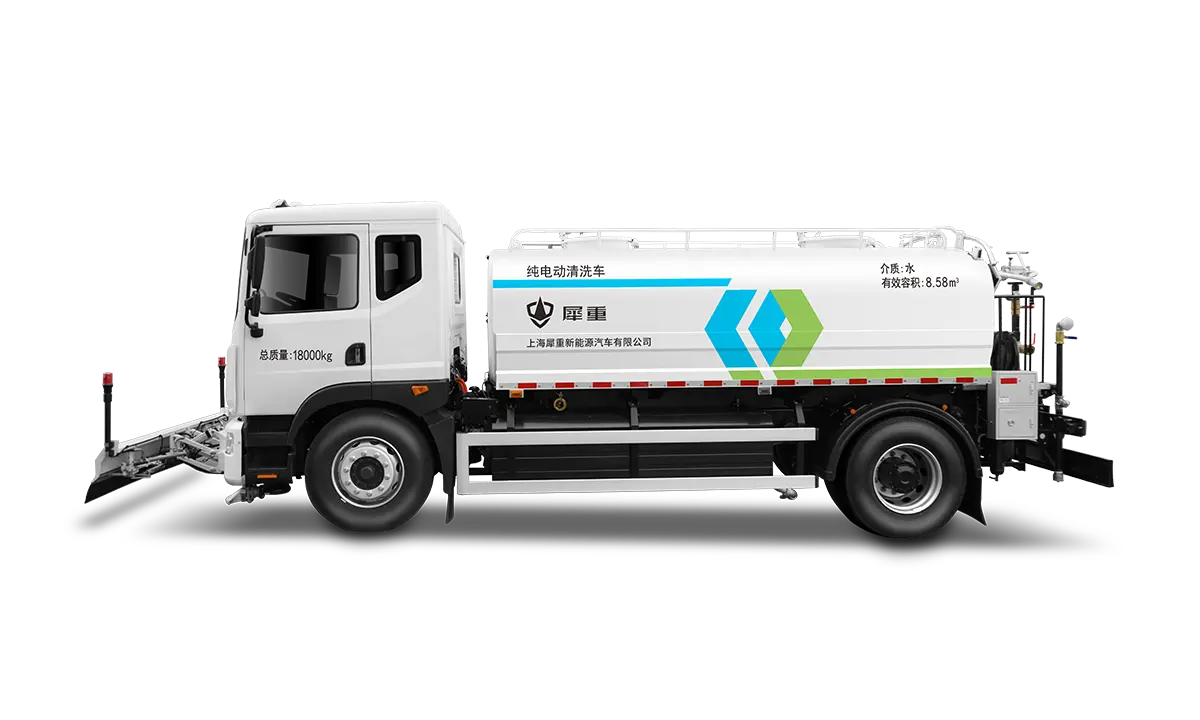

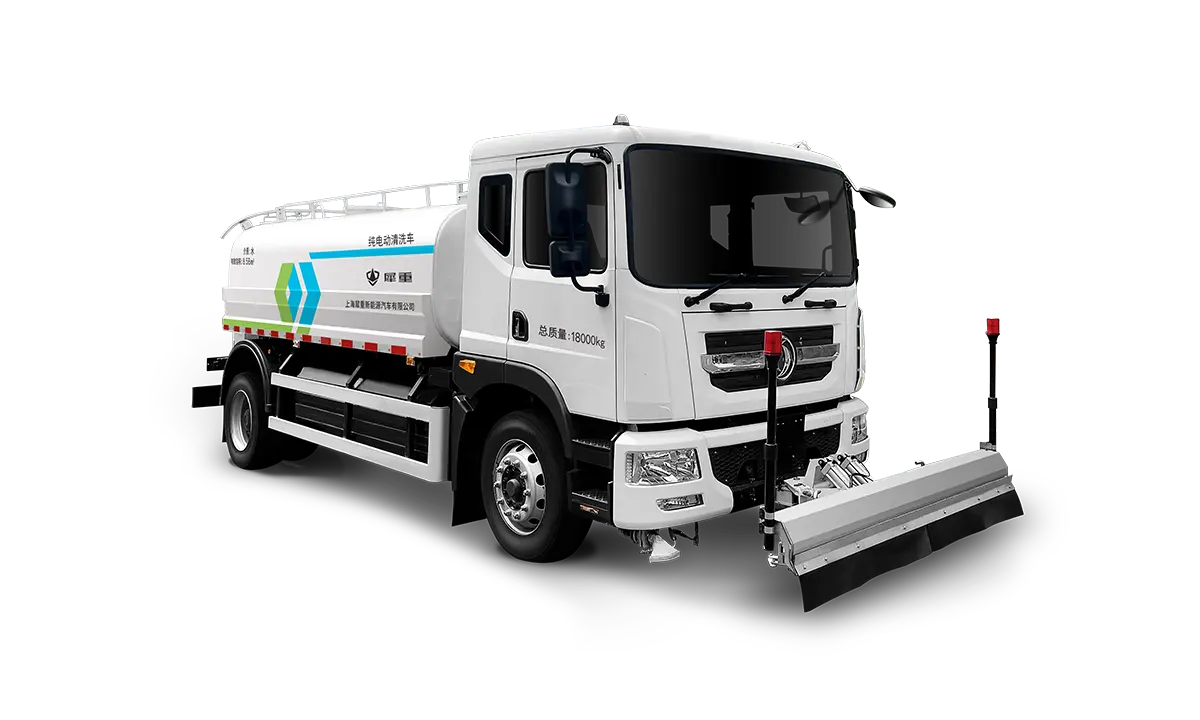

The 18T Electric Multi-Function Cleaning Vehicle by is a next-generation, zero-emission sanitation solution engineered for high-efficiency, large-scale urban and highway cleaning. Designed to meet the demanding requirements of modern smart cities, this versatile vehicle excels in road surface flushing, dust suppression, green belt irrigation, tunnel cleaning, and emergency firefighting support across a wide range of environments—including city main roads, expressways, bridges, airports, docks, tunnels, squares, and residential communities.
Powered by a high-torque permanent magnet synchronous motor (120 kW rated / 200 kW peak power, 1000–2400 N·m torque) and equipped with CATL or EVE lithium iron phosphate batteries (up to 255.48 kWh), the vehicle delivers an impressive endurance of up to 365 km (equivalent speed method). It features a large 8.85 m³ (or 8.58 m³) water tank, enabling extended operation without frequent refills.

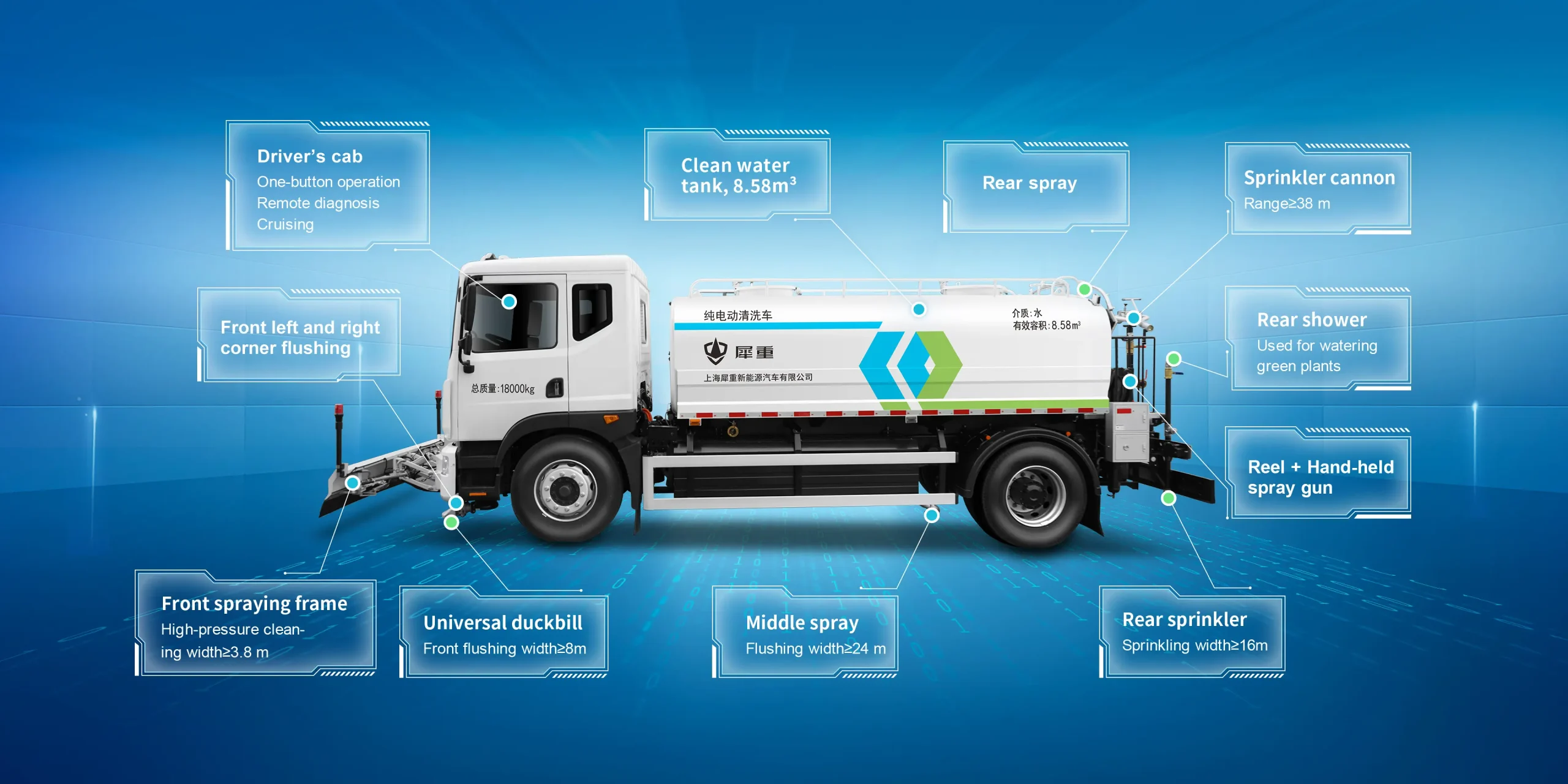

Key performance highlights include:
- ≥24-meter face-to-face high-pressure flushing width for rapid removal of stubborn dirt and grime
- ≥16-meter low-pressure sprinkling width for effective dust control
- ≥3.8-meter rear cleaning width for comprehensive road coverage
- Integrated multi-mode system: high-pressure front cannon, low-pressure side nozzles, handheld spray gun, and fire hose outlet for emergency use
- High-reliability domestic water pump and thickened high-quality steel tank for long service life
- Available on Dongfeng or Shaanxi Automobile chassis, with climbing capability of ≥17–20% gradient
The cab is equipped with a centralized touch-screen control interface, offering intuitive, ergonomic operation with real-time system monitoring—allowing drivers to manage all functions safely from inside the cabin.
