| Parameter | Specification |
|---|---|
| Sensor Type | Transmission Position Sensor |
| Sensing Technology | 3D Hall Effect |
| Output Signal | Analog / PWM / SENT |
| Interface | Standard automotive connector |
| Operating Voltage | 8–16 VDC |
| Operating Temperature | -40°C to +150°C |
| Storage Temperature | -40°C to +130°C |
| Supply Current | <15 mA |
| Signal Output | Proportional to gear position |
| Safety Rating | ASIL-B compliant (ISO 26262) |
| Output Configuration | Single-path or dual-path |
| Mounting Method | Direct mount on transmission housing |
| Material | High-temperature resistant polymer |
| Compliance | RoHS, REACH, ISO 7637-2, AEC-Q100 Grade 1 |
| Diagnostic Support | Fault code reporting via signal analysis |

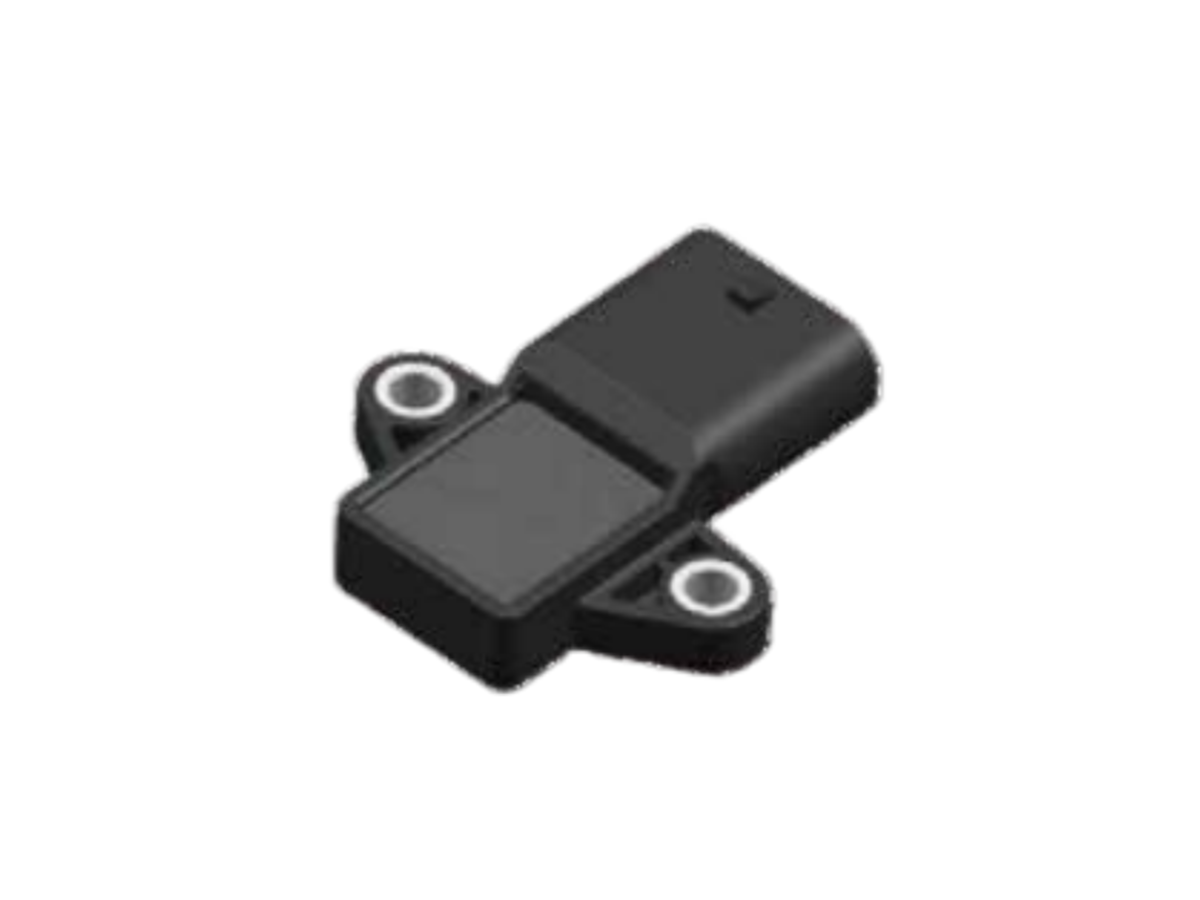

The Transmission Position Sensor is a high-precision device designed for accurate detection of gear shift positions in automatic transmissions. It plays a crucial role in the operation of the Transmission Control Unit (TCU), providing real-time feedback on the exact position of each gear selector—whether in Park, Reverse, Neutral, Drive, or Sport mode. This data enables the TCU to precisely manage clutch engagement, torque converter lock-up, and shift timing, resulting in smoother, more responsive gear changes and enhanced driving comfort.
This sensor employs advanced 3D Hall-effect sensing technology, which allows it to measure magnetic fields in three dimensions—X, Y, and Z—enabling highly accurate determination of the gear lever’s position regardless of mechanical wear or misalignment. Unlike traditional contact-based switches or potentiometers, this non-contact design offers superior reliability, longer lifespan, and resistance to contamination from oil, dust, or moisture. The sensor supports multiple output formats—including analog voltage, PWM (Pulse Width Modulation), and SENT (Single Edge Nibble Transmission) protocol—making it compatible with a wide range of controller architectures across different vehicle platforms.
With a maximum operating temperature of 150°C, it is specifically engineered to withstand the extreme thermal conditions found within the transmission housing during prolonged high-load operation. Its low current consumption and wide voltage operating range make it ideal for use in modern fuel-efficient vehicles where energy management is paramount. The sensor also features strong immunity to external electromagnetic interference (EMI) and stray magnetic fields, ensuring stable performance even in noisy electrical environments.
It meets ISO 26262 functional safety standards at ASIL B level, ensuring reliable operation in safety-critical applications. The design supports both single-path and dual-path output configurations, allowing flexibility in system redundancy requirements. Additionally, its modular construction allows easy integration into existing transmission housings, with mounting options that accommodate various gear shift mechanisms.
