| Feature | Specification |
|---|---|
| Engine Type | Liquid-Cooled Single-Cylinder |
| Displacement | 520cc |
| Compression Ratio | 9.2:1 |
| Cooling System | Liquid Cooling |
| Fuel Delivery | Fuel Injection (EFI) |
| Start System | Electric Start |
| Max Power | 30kW (40HP) @ 7,500 RPM |
| Max Torque | 46 N·m @ 6,000 RPM |
| Transmission | CVT Automatic (P/R/N/H/L) |
| Drive System | Real-Time 4×4 + 2WD |
| Front Suspension | Dual A-Arm |
| Rear Suspension | Mono-Shock |
| Front Brakes | Disc Brake |
| Rear Brakes | Disc Brake |
| Tire Size | Front: 22×7-10 75J / Rear: 22×10-10 85J |
| Wheelbase | 1360mm (53.5″) |
| Ground Clearance | 250mm (9.8″) |
| Seat Height | 330mm (13.0″) |
| Dry Weight | 250kg (551 lbs) |
| Fuel Tank Capacity | 12 Liters (3.17 US Gallons) |
| Cargo Capacity | Front/Rear Racks: 50kg Combined |
| Dimensions | 2100 × 1150 × 1250mm (82.7 × 45.3 × 49.2″) |
| Frame Material | Steel Tube |
| Wheels | Aluminum Alloy Rims |

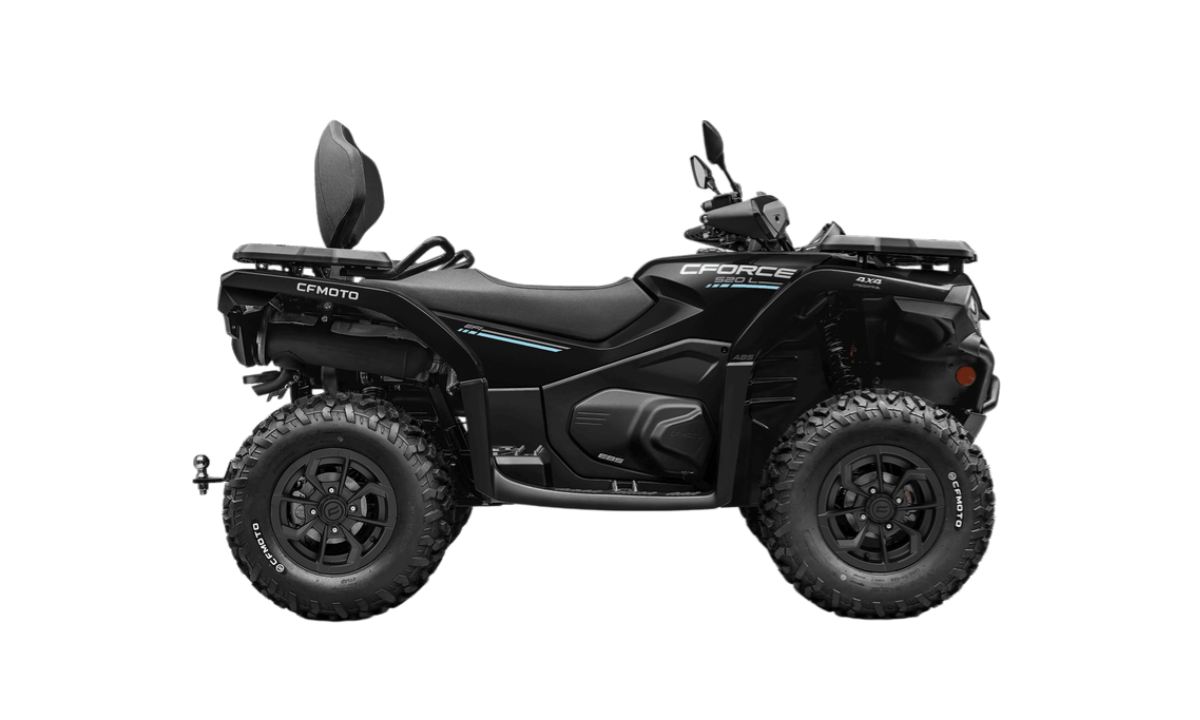

TheCompact Utility ATV in Nebula Black is a high-performance mid-sized ATV engineered for rugged off-road adventures and utility tasks. Powered by a 520cc liquid-cooled, single-cylinder engine (30kW/40HP @ 7,500 RPM), it delivers 46 N·m of torque for confident hill climbing and hauling. The CVT automatic transmission with P/R/N/H/L gears and real-time 4×4 drive system ensures seamless power delivery across any terrain. Its dual A-arm front suspension and mono-shock rear suspension provide smooth handling, while 250mm (9.8″) ground clearance allows easy navigation over rocks and roots. Weighing 250kg (551 lbs), this rugged ATV (2100×1150×1250mm) features a 12L fuel tank, 330mm seat height, and front/rear disc brakes for reliable stopping power. With its Nebula Black color, durable build, and top speed of 75km/h (47mph), it’s ideal for hunters, farmers, or families seeking dependable off-road performance.
The Compact Utility ATV in Nebula Blackredefines versatility in the mid-sized ATV category, blending robust power, advanced engineering, and rider-centric design to tackle both recreational and utility demands. Whether you’re navigating forest trails, hauling gear on a farm, or exploring desert dunes, this ATV is engineered to deliver consistent performance in diverse environments.
Powerful 520cc Engine for All-Terrain Capability
At the core of the CFORCE 520 lies a 520cc liquid-cooled, single-cylinder engine with a 9.2:1 compression ratio, producing 30kW (40HP) at 7,500 RPM and 46 N·m of torque at 6,000 RPM. This engine combines responsive acceleration with low-end grunt, ensuring effortless hill climbs and towing capacity. The fuel-injected (EFI) system guarantees crisp throttle response and fuel efficiency, while the electric start ensures reliable ignition in any condition. The CVT automatic transmission with P/R/N/H/L (Parking/Reverse/Neutral/High/Low) gears allows seamless transitions between driving modes, making it accessible for riders of all skill levels.
Real-Time 4×4 Drive for Unmatched Traction
The CFORCE 520’s real-time 4×4 drive system dynamically shifts between 2-wheel and 4-wheel drive, optimizing traction without manual intervention. The low-range gear multiplies torque for extreme off-road situations, while the high-range gear ensures highway-capable speeds. This system balances simplicity and versatility, making it ideal for both beginners and seasoned riders.
Rugged Chassis for Durability and Agility
Built for harsh environments, the CFORCE 520 boasts a 1360mm wheelbase and 250mm (9.8″) ground clearance, allowing it to tackle rocks, roots, and ruts without undercarriage damage. The 250kg (551 lbs) dry weight strikes a balance between durability and agility, while the 2100×1150×1250mm dimensions provide a compact footprint for easy maneuverability. The 330mm seat height offers a commanding riding position without compromising ground reach, and the 12L fuel tank supports extended missions.
Advanced Suspension and Braking System
To handle its power, the CFORCE 520 features a dual A-arm front suspension and mono-shock rear suspension, tuned for a balance of comfort and performance. The front disc brake and rear disc brake provide consistent stopping power, even in wet or dusty conditions. The 22×7-10 front and 22×10-10 rear tires (75J/85J load ratings) deliver aggressive grip on loose surfaces, while the aluminum alloy wheels reduce unsprung weight for sharper handling.
Safety and Utility Features
Safety is prioritized with a reinforced steel frame and low seat height for stable rider positioning. The Nebula Black color adds a sleek, modern aesthetic, while the LED headlights and digital instrument cluster enhance visibility and usability. The front and rear racks (combined 50kg capacity) accommodate gear, tools, or supplies, making it a versatile workhorse.
Perfect for Hunting, Farming, or Recreation
Whether you’re a hunter tracking game through forests, a farmer hauling equipment, or an adventurer exploring backcountry trails, the CFORCE 520 adapts effortlessly. Its top speed of 75km/h (47mph), real-time 4×4 system, and 12L fuel tank make it equally capable on gravel, mud, sand, or snow. Additional features like a 12V charging port and waterproof electrical system enhance usability for modern riders.
