| Product Model | 77GHz 4D Millimeter Wave Radar | 77GHz Millimeter Wave Forward Radar | 77GHz Millimeter Wave Corner Radar |
| Detection Range | Up to 300m | 280m (overall); >100m (pedestrians) | Up to 180m |
| Angular Resolution | Pitch angle <1.5° | Horizontal <
2.6° |
Horizontal 2.5° |
| Field of View | – | Horizontal ±60° | – |
| Channel Configuration | 6T8R, 48 virtual channels | – | – |
| Point Cloud Quantity | 2000+ | 512 | 512 |
| Maximum Tracked Targets | – | 64 |
Key Features
Core Technical Advantages

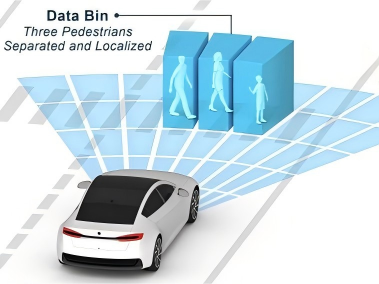

- Multi-Dimensional Perception Capability: 4D radar achieves point cloud imaging with high density, while forward and corner radars expand detection coverage, realizing comprehensive environmental awareness.
- Superior Long-Distance & High-Resolution Detection: All models boast extended detection ranges, with ultra-high angular resolution for accurate identification of small obstacles and multiple targets.
- Strong Anti-Interference & Reliability: Adopts Step FMCW waveform system and dual-chip cascading (4D radar), paired with ASIL B functional safety and HSM information security for stable operation.
- Flexible Adaptability: Supports CAN-FD/100M Ethernet interfaces, parking-driving mode switching, and provides backend reference SDK, enabling rapid parametric adaptation for mass production.
- Cost-Effective High-Performance Design: Next-gen waveguide antenna with low loss, high gain, and large frequency bandwidth, balancing performance and cost.
