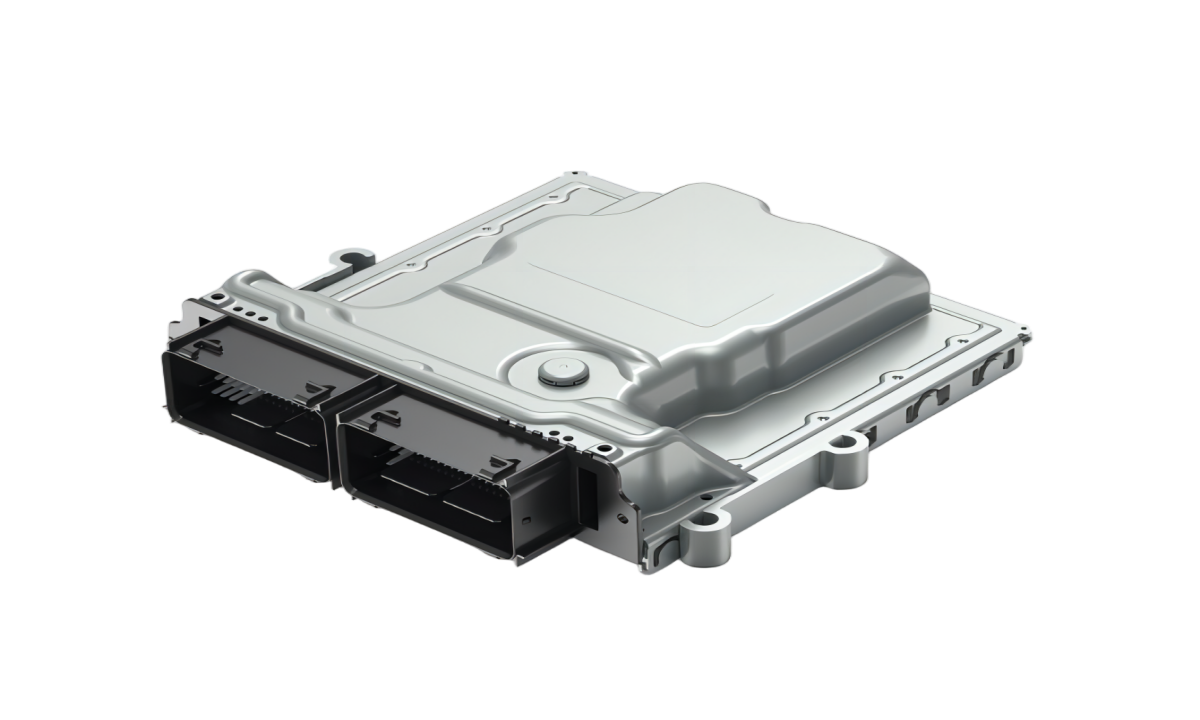

This controller is a new-generation gasoline direct injection (GDI) control unit developed by United Automotive Electronic Systems Co., Ltd. in response to the localized demands of the Chinese market. It is designed to meet China Ⅵ and increasingly stringent future emission regulations and fuel consumption standards.
Relying on its robust local engineering and development capabilities, United Automotive Electronic Systems Co., Ltd. adopts a customer-oriented approach, providing customers with flexible and efficient engineering services as well as cost-effective engine control system solutions.
The new-generation controller platform supports a 350bar fuel direct injection system. It also enables customers to implement a wide range of specialized functions and requirements, including turbocharging technology, start-stop control, variable valve timing control, intelligent generator control, port direct injection (PDI), ignition protection, electric water pump, intelligent thermal management, closed-loop control of high-pressure fuel injectors, CAN-FD and CAN wake-up.
Features
- Equipped with a 32-bit multi-core MCU, featuring 164/198-pin dual-compartment connectors and 4-10M flash memory.
- Adopts a basic software architecture compliant with the AUTOSAR 4.x standard and powerful application-layer software functions, which can satisfy more complex vehicle/engine configurations and joint development requirements.
- Supports up to 8 channels of fuel injection drive, compatible with PDI.
- Capable of driving DC motors via up to 5 H-bridge drive channels.
- Integrated with high-performance power supply and monitoring chips, with abundant hardware input and output resources.
- Possesses sound network management and abundant communication resources: supports CAN/CAN FD, selective CAN wake-up and meets network security requirements, with 3 CAN channels and 3 LIN channels.
- Adopts a new-generation mechanical design, supporting two optional vehicle installation methods.
- Vibration resistance rating: 3.3g; dust and water protection rating: IP6K9K.
- Functional safety design complies with ASIL C requirements.
