| Parameter | Value |
|---|---|
| Motor Type | Permanent Magnet Synchronous Motor |
| Operating Voltage | 220V~450V |
| Peak Power | 120kW |
| Rated Power | 50kW |
| Peak Torque | 215Nm |
| Rated Torque | 100Nm |
| Maximum Speed | 16000rpm |
| Reduction Ratio | 11.62 |
| Protection Rating | IP67 |
| Functional Safety | ASIL C |
| EMC Class | Class 3 |
| Cooling Method | Water-Cooled |
| Overall Dimensions | 442mm × 435mm × 295mm |

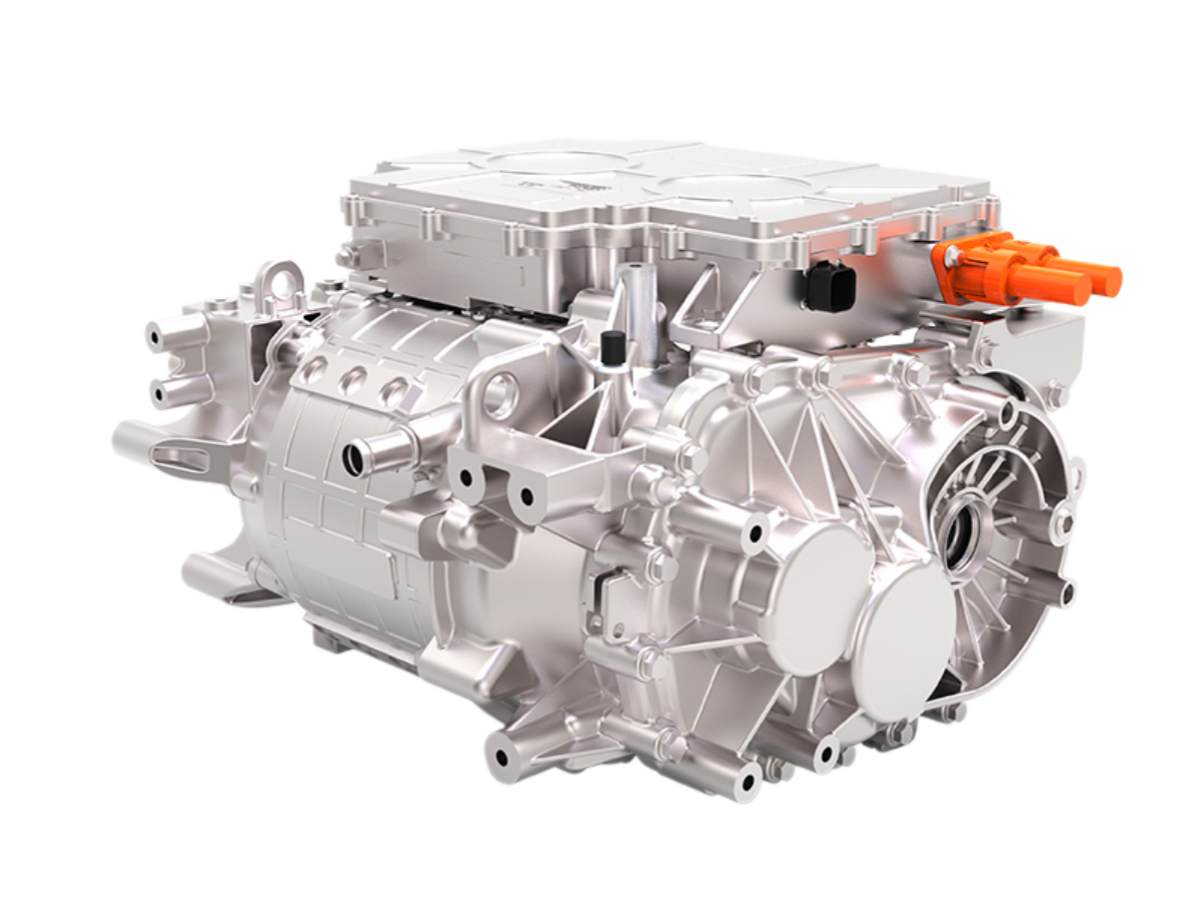

Engineered by Dowway Vehicle, a China-based manufacturer specializing in R&D and customization, the EP100 Three-in-One Electric Drive System delivers 120kW peak power, 215Nm peak torque, and operates within a 220-450V voltage range. IP67-rated, water-cooled, and ASIL C certified, it combines high performance with compact dimensions (442×435×295mm) for reliable EV integration.
Powering Electric Mobility with Innovation
Dowway Vehicle, a leading Chinese manufacturer, introduces the EP100 Three-in-One Electric Drive System—an integrated solution designed for electric vehicle (EV) manufacturers seeking high efficiency, compact design, and customizable performance. Backed by our expertise in R&D and engineering, this system balances power, reliability, and safety to accelerate EV development.
Dowway Vehicle, a leading Chinese manufacturer, introduces the EP100 Three-in-One Electric Drive System—an integrated solution designed for electric vehicle (EV) manufacturers seeking high efficiency, compact design, and customizable performance. Backed by our expertise in R&D and engineering, this system balances power, reliability, and safety to accelerate EV development.
Key Specifications:
- Motor Technology: Permanent Magnet Synchronous Motor for optimal efficiency and responsiveness.
- Power & Torque:
- Peak Power: 120kW for robust acceleration; Rated Power: 50kW for sustained performance.
- Peak Torque: 215Nm; Rated Torque: 100Nm for reliable torque output.
- Electrical & Mechanical Design:
- Operating Voltage: 220V~450V (flexible integration with EV battery systems).
- Maximum Speed: 16,000rpm for high-efficiency operation.
- Reduction Ratio: 11.62 for optimized torque delivery.
- Protection & Safety:
- IP67 protection against dust and water ingress for harsh environments.
- Functional Safety: ASIL C certification ensures robust risk mitigation.
- EMC Class 3 compliance for electromagnetic compatibility.
-
Why Choose Dowway Vehicle?
As a trusted partner in electric drive innovation, we offer full-cycle support—from custom R&D to precision manufacturing—tailoring the EP100 system to your EV’s unique powertrain requirements. Contact us to optimize your vehicle’s performance with our engineering expertise.
