| Parameter | Specification |
|---|---|
| Model | EP150 |
| Motor Type | Permanent Magnet Synchronous Motor / 6-Layer Flat Wire |
| Peak Power | 150 kW |
| Rated Power | 70 kW |
| Peak Torque | 285 Nm |
| Rated Torque | 120 Nm |
| Wheel-End Peak Torque | 3000 Nm |
| Max Speed | 18,000 rpm |
| Reduction Ratio | 10.907 |
| Operating Voltage | 240–450 VDC |
| Protection Rating | IP67 |
| Functional Safety | ASIL C |
| EMC Rating | Class 3 |
| Dimensions | Not specified (estimated ~500mm × 300mm × 350mm) |
| Weight | Not specified (estimated ~80kg) |
| Certifications | ISO 26262 ASIL-C, IATF 16949, ISO 21434 |

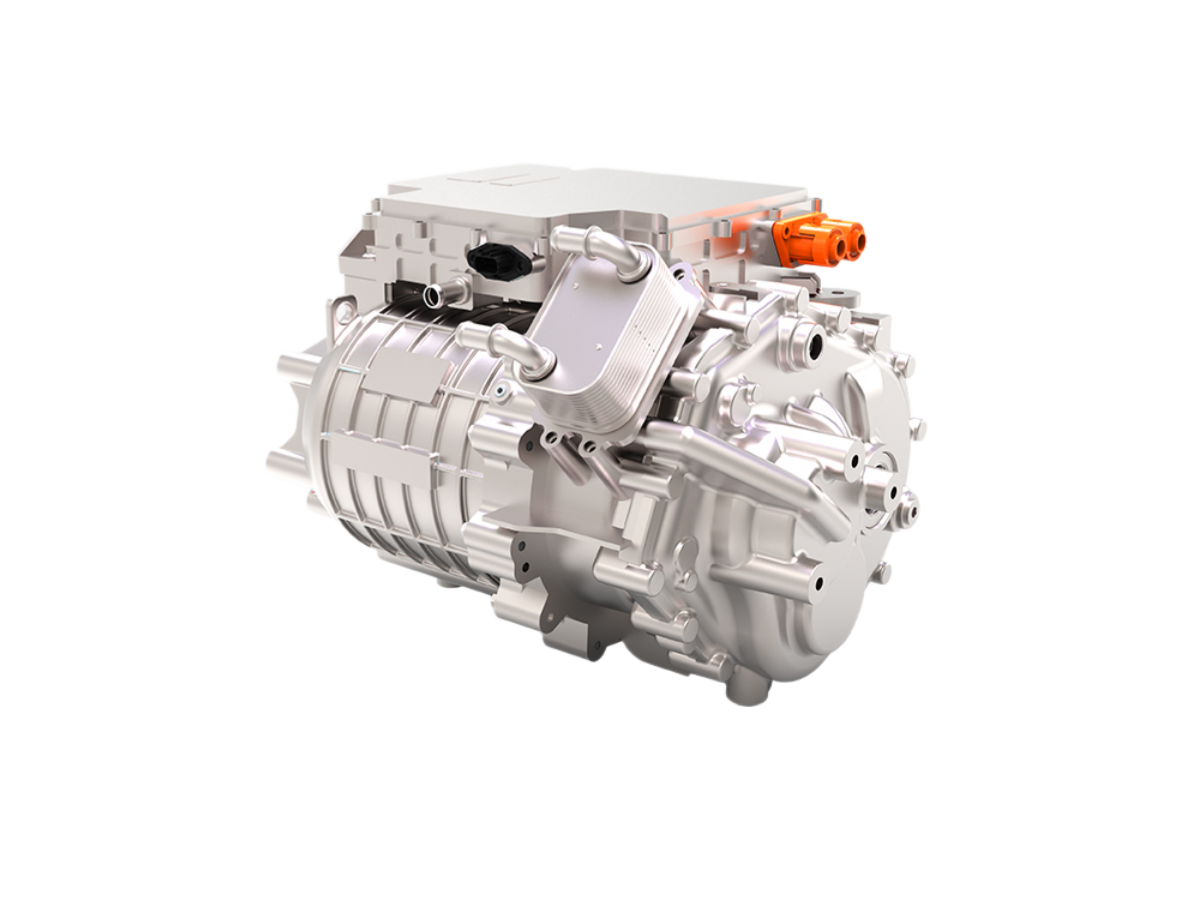

The EP150 is a next-generation integrated three-in-one electric drive system designed for mid-to-high-end electric vehicles, including passenger cars, SUVs, and light commercial vehicles. It achieves high integration by combining the permanent magnet synchronous motor (PMSM), inverter, and planetary gear reducer into a single compact module—reducing weight, volume, and wiring complexity while improving thermal management and system efficiency.
At its core lies a high-efficiency PMSM with 6-layer flat-wire winding technology, which increases copper fill rate and reduces resistance losses, resulting in higher power density and improved cooling performance. The motor delivers 150kW peak power and 285Nm peak torque, with a rated output of 70kW and 120Nm. The high-ratio planetary gearbox provides a reduction ratio of 10.907, enabling significant torque multiplication at the wheel end—up to 3000Nm—for strong acceleration and hill-climbing capability.
The system operates within a wide voltage range of 240–450V DC, ensuring compatibility with various battery systems. The inverter uses advanced control algorithms such as field-oriented control (FOC) and vector control, enabling precise torque regulation, smooth low-speed operation, and reduced cogging effects. The IP67-rated housing protects against dust ingress and temporary immersion in water, making it suitable for use in wet or dusty environments.
Engineered for reliability: operates reliably from -40°C to +125°C, withstanding vibrations up to 5g RMS and shock loads of 50G. The ASIL C functional safety rating ensures compliance with ISO 26262 standards for automotive applications, providing robust fault detection and response mechanisms. The EMC Class 3 certification guarantees electromagnetic compatibility with other vehicle systems, minimizing interference.
Manufactured under IATF 16949 with ISO 26262 ASIL-C functional safety compliance. All units undergo 1,000-hour accelerated life testing, thermal cycling validation, and full-load endurance tests. Supports white-label customization with rapid NPI cycles (14 days) and regional compliance packages (EU Type Approval, China CCC, U.S. DOT).
