| Feature | Specification |
|---|---|
| Engine Type | GY6, 4-Stroke, Single-Cylinder |
| Displacement | 149.5cc |
| Bore × Stroke | Not Specified |
| Compression Ratio | 9.2:1 |
| Cooling System | Air-Cooled |
| Fuel Delivery | Carburetor |
| Start System | Electric Start |
| Max Power | 6kW (8HP) @ 7,500 RPM |
| Max Torque | 8.3 N·m @ 7,500 RPM |
| Transmission | CVT Automatic (F/N/R) with Chain Drive |
| Drive System | 2-Wheel Drive (2WD) |
| Front Suspension | Double A-Arm |
| Rear Suspension | Mono-Shock Swingarm |
| Front Brakes | Drum Brake |
| Rear Brakes | Disc Brake |
| Tire Size | Front: AT19×7-8 / Rear: AT18×8-8 |
| Wheelbase | 1100mm (43.3″) |
| Ground Clearance | 110mm (4.3″) |
| Seat Height | 725mm (28.5″) |
| Dry Weight | 160kg (352 lbs) |
| Fuel Tank Capacity | 7.8 Liters (2.06 US Gallons) |
| Cargo Capacity | Front Rack: 10kg / Rear Rack: 20kg |
| Dimensions | Not Specified |

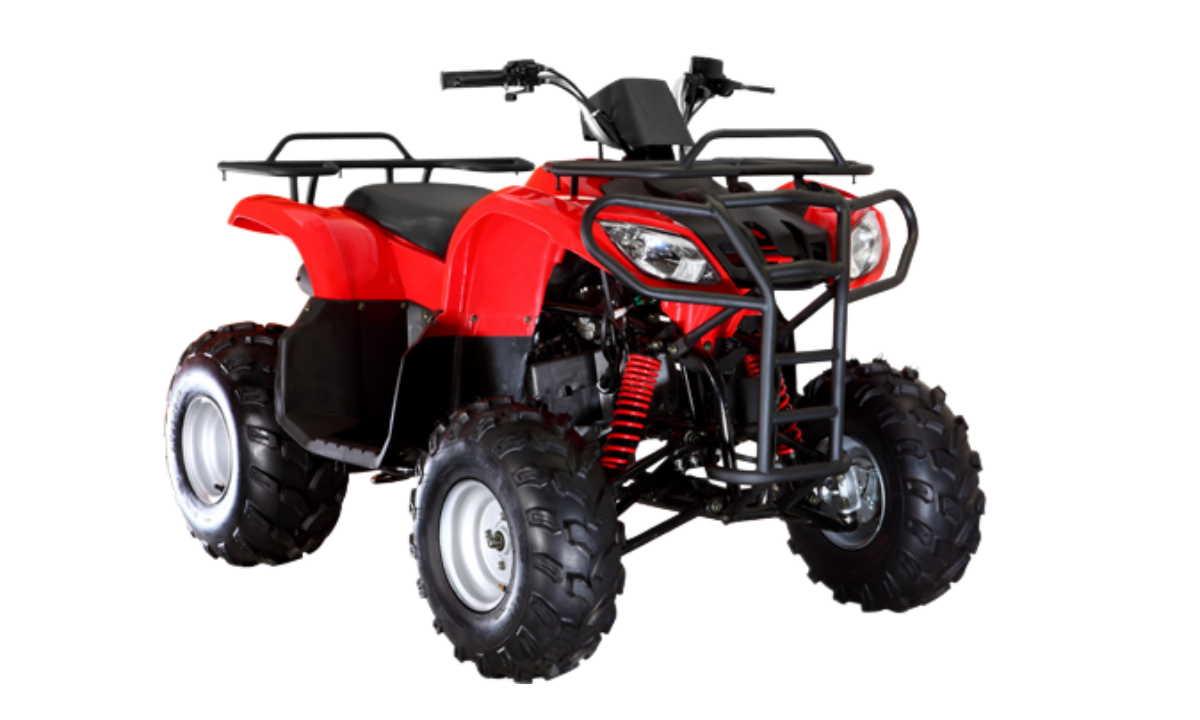

It is a compact, beginner-friendly ATV designed for beach adventures, urban commutes, and light-duty utility tasks. Powered by a 149.5cc GY6 air-cooled, single-cylinder engine (6kW/8HP @ 7,500 RPM), it combines a CVT automatic transmission with chain drive for effortless operation. The front drum brake and rear disc brake ensure reliable stopping power, while the 110mm (4.3″) ground clearance and 1100mm wheelbase provide agile handling. Weighing just 160kg, this lightweight ATV (dimensions not specified) features a 7.8L fuel tank, 725mm seat height, and AT19×7-8 front / AT18×8-8 tires for stable performance on sand or gravel. The front/rear cargo racks (10kg/20kg capacity) add practicality for carrying gear. Perfect for new riders, this entry-level model delivers simplicity, durability, and versatile off-road capability.
it is a purpose-built entry-level ATV tailored for riders seeking an affordable, user-friendly machine for beach rides, casual trails, and urban utility. As part of Loncin’s LX series, this model leverages the proven GY6 engine platform, known for its reliability, low maintenance, and smooth performance. Whether you’re exploring coastal dunes, running errands locally, or practicing basic off-road skills, the LX150ATV-3A offers a seamless blend of simplicity, efficiency, and rugged versatility.
Reliable Power with GY6 Engine Technology
At its core, the LX150ATV-3A features a 149.5cc GY6 air-cooled, single-cylinder engine with a 9.2:1 compression ratio, delivering 6kW (8HP) at 7,500 RPM and 8.3 N·m of torque at 7,500 RPM. This engine is renowned for its durability and ease of maintenance, making it ideal for beginners and budget-conscious riders. The carbureted fuel system ensures consistent performance in diverse conditions, while the electric start guarantees hassle-free ignition. The CVT (Continuously Variable Transmission) with F/N/R (Forward/Neutral/Reverse) mode eliminates manual gear shifts, allowing riders to focus on terrain and control.
Efficient Chain Drive for Diverse Terrain
It utilizes a chain-driven 2-wheel drive (2WD) system, prioritizing lightweight agility and efficient power transfer to the rear wheels. This setup balances simplicity and durability, requiring minimal maintenance while delivering robust performance on sand, gravel, or paved roads. The automatic CVT transmission adjusts gear ratios seamlessly, optimizing acceleration and fuel efficiency without rider intervention.
Agile Chassis for Beach and Urban Use
Designed for versatility, the LX150ATV-3A features a 1100mm wheelbase and 110mm (4.3″) ground clearance, ensuring nimble handling and obstacle clearance over uneven surfaces. The double A-arm front suspension and mono-shock swingarm rear suspension absorb shocks effectively, maintaining stability during beach rides or technical trail sections. Its 160kg dry weight strikes a balance between portability and sturdiness, making it easy to maneuver in tight spaces or steep inclines.
Safety and Practicality for Everyday Use
Safety is prioritized with a front drum brake and rear disc brake, providing reliable stopping power in dusty or wet conditions. The 725mm seat height caters to riders of varying heights, offering confidence and control during casual rides. The 7.8L fuel tank supports extended adventures without frequent refueling, while the AT19×7-8 front and AT18×8-8 rear tires deliver stable traction on loose surfaces. The front/rear cargo racks (10kg/20kg capacity) add practicality for carrying tools, groceries, or personal gear.
Perfect for Beaches, Trails, and Commutes
Whether you’re carving through coastal dunes, navigating forest trails, or running local errands, the LX150ATV-3A adapts seamlessly. Its compact design ensures agility in urban settings, while the 2WD system prioritizes lightweight performance over technical terrain. Additional features like LED headlights, a digital instrument cluster, and a 12V charging port enhance convenience for modern riders.
For entry-level adventurers seeking a no-nonsense ATV that balances automatic convenience, rugged capability, and affordability, it delivers unmatched value. It’s the ultimate companion for beginners, casual riders, and beachgoers who demand simplicity without compromise.
