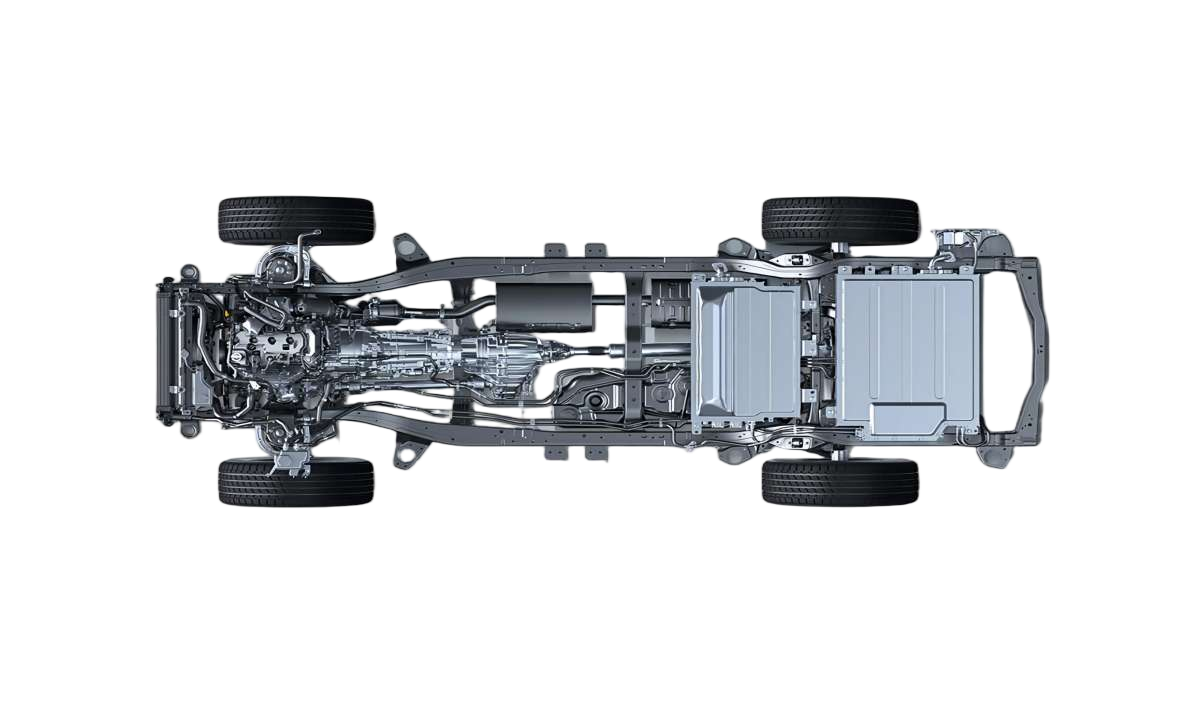

The all-new hybrid architecture Hi4 represents the world’s pioneering intelligent 4WD electric hybrid technology. Based on the concept of “more fuel-efficient, longer-range, and safer”, Great Wall Motors has created a “top-tier” hybrid technology with the innovative configuration of series-parallel electric 4WD featuring dual motors on the front and rear axles.

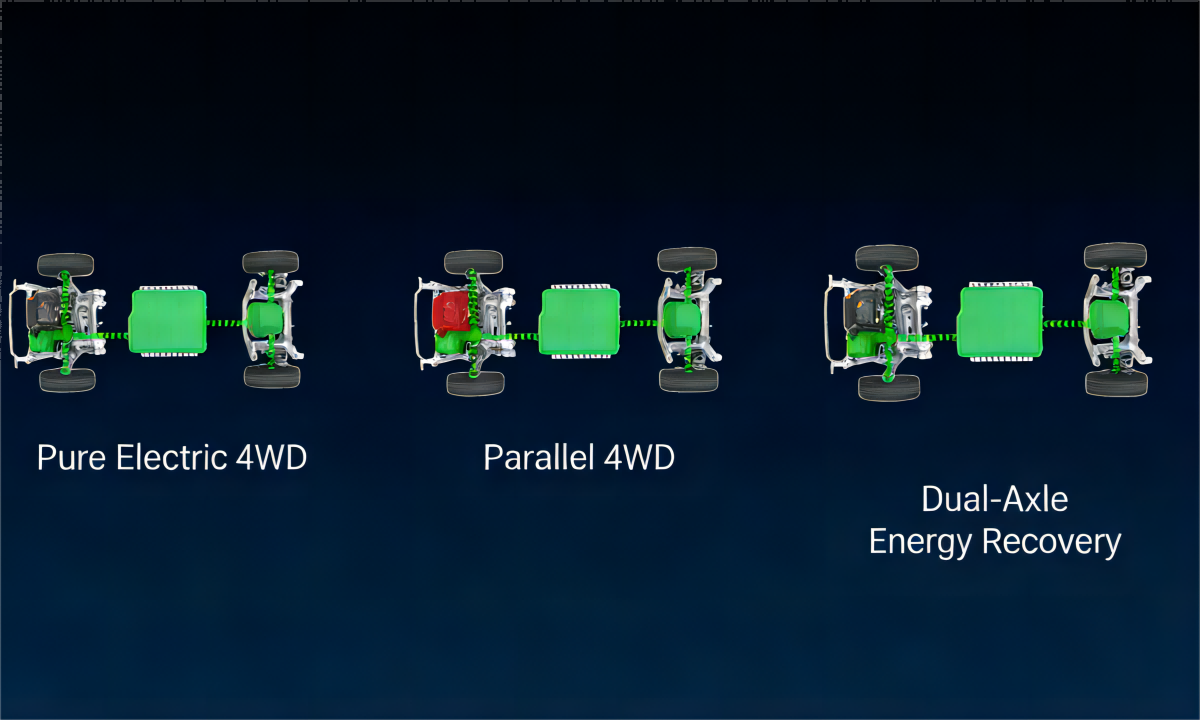

Through the dynamic switching of 3-engine 9-mode and the intelligent energy management system, the all-new Hi4 truly achieves “4WD experience at 2WD price, 4WD performance with 2WD energy consumption”, realizing “optimal efficiency in all working conditions and worry-free driving in all scenarios”.
Key advantages：
- Achieves an optimal engineering thermal efficiency of 41.5% with the industry’s best current technical configuration
- 16:1 ultra-high compression ratio
- 350bar high-pressure injection system
- 28% ultra-high EGR system
- 0.3bar ultra-low friction
- Multi-in-one highly integrated drive unit with a 2-speed electromechanical coupling unit
- Variable lubrication flow control, low-resistance bearings, and low-viscosity oil application, enabling a maximum transmission efficiency of up to 98%
- Low-harmonic motor and high-overlap gear design for quiet driving across all operating conditions
- 150kW high-efficiency drive motor with a maximum efficiency of >96.5%
- Adoption of industry-leading technologies including hairpin flat-wire motor, low-harmonic windings, and rotor skew pole
Hi4 Technical Parameters
| Technical Category | Specific Indicators |
| Core Technology Definition | Hi4 Meaning |
| Three Major Innovations | New Configuration |
| New Breakthrough | iTVC intelligent torque vector control system, improves vehicle handling stability, comfort, safety, full-speed range acceleration up to 40% higher |
| New Height | Electromechanical coupling transmission system, engine and dual motors coordinate, key component life extended by more than 1.3 times |

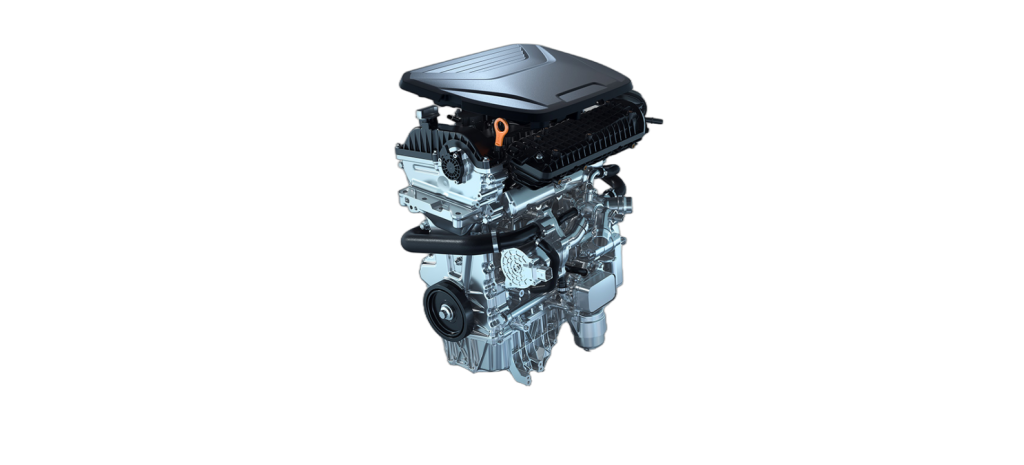

| Hybrid-specific Engine | Engineering Thermal Efficiency |
| Key Designs | 16:1 ultra-high compression ratio, 350bar high-pressure injection system, 28% ultra-high EGR system, 0.3bar ultra-low friction |

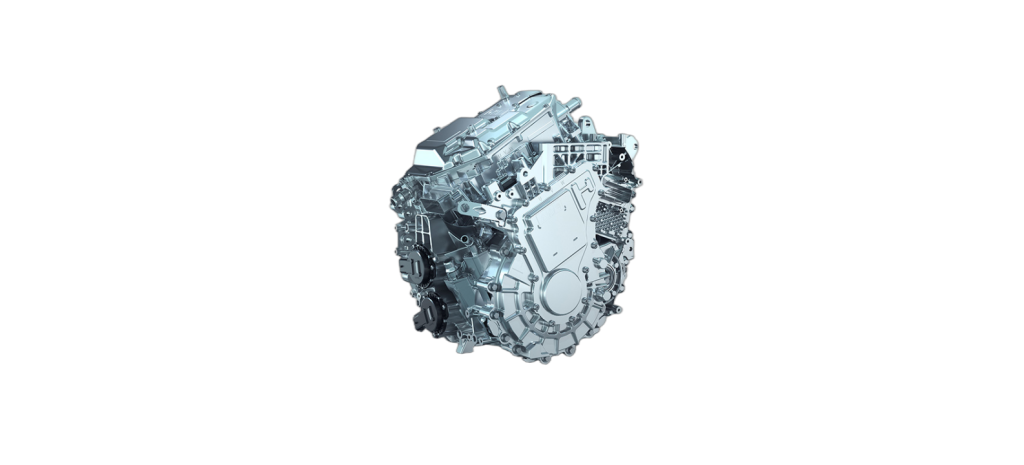

| Drive Module Assembly | Front Drive Module |

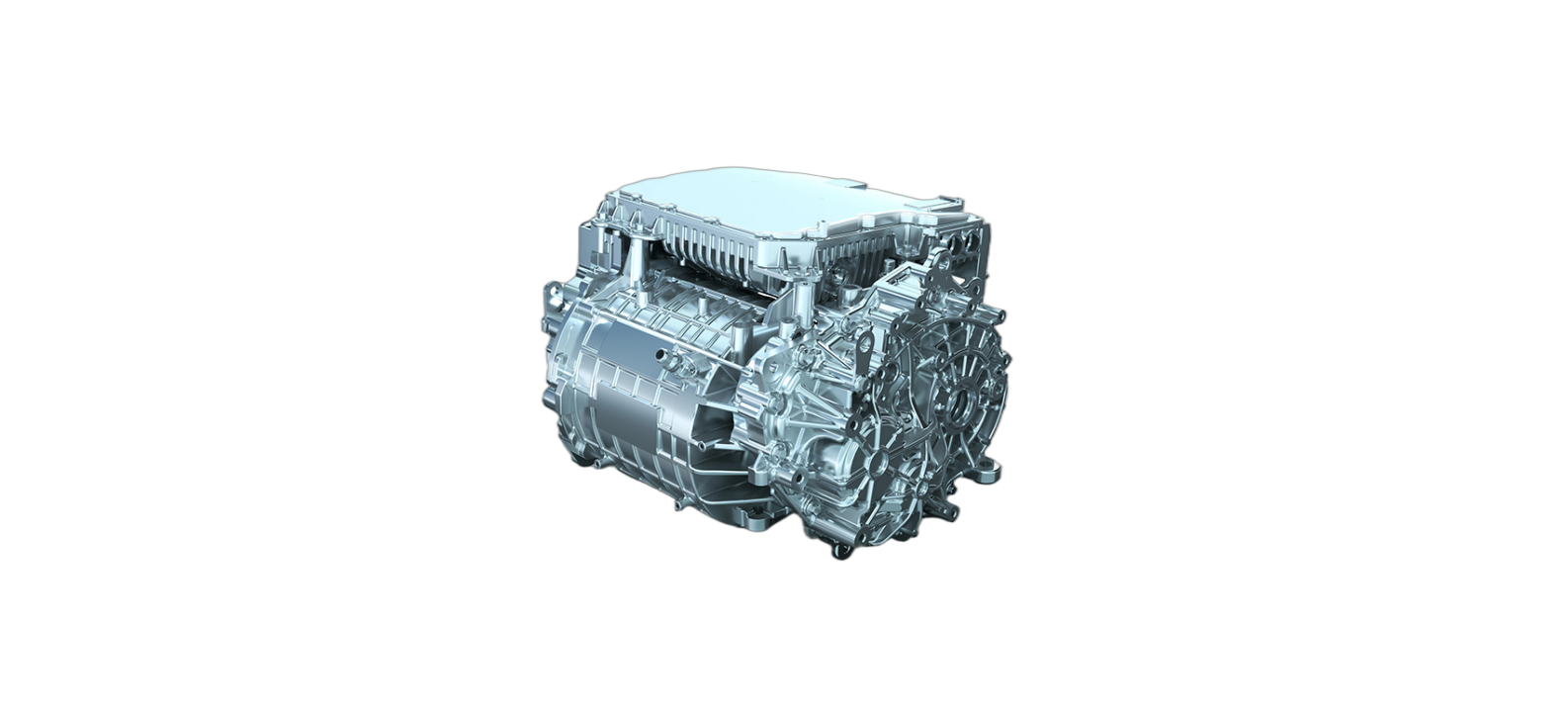

| Rear Drive Module | Maximum efficiency over 96.5%, 150kW high-efficiency drive motor, Hair-pin flat wire motor, low-harmonic winding, rotor skew pole |
| Power Battery | Safety Design |
| Performance Design | Laminated low internal resistance design, high-rate performance |
| Working Mode & Control | Dynamic Switching |
| Response Speed | Torque request <10ms, 100 data interactions per second |
| Energy Management | Intelligent energy management system, vehicle energy efficiency improved by 8% |
