| Feature | Specification |
|---|---|
| Engine Type | 4-Stroke, Single-Cylinder, SOHC with Balancing Shaft |
| Displacement | 229.5cc |
| Bore × Stroke | 71.0 × 58.0 mm |
| Compression Ratio | 8.0:1 |
| Cooling System | Air-Cooled |
| Fuel Delivery | Carburetor |
| Start System | Electric + Recoil Start |
| Max Power | 10.5kW (14HP) @ 7,000 RPM |
| Max Torque | 16.5 N·m @ 6,000 RPM |
| Transmission | Manual 5-Speed + Reverse with Shaft Drive |
| Drive System | 2-Wheel Drive (2WD) |
| Front Suspension | MacPherson Strut with Dual A-Arms |
| Rear Suspension | Mono-Shock Swingarm |
| Front Brakes | Dual Disc Brakes |
| Rear Brakes | Sealed Drum Brake |
| Tire Size | Front: AT23×7-10 / Rear: AT22×10-10 |
| Wheelbase | 1160mm (45.7″) |
| Ground Clearance | 155mm (6.1″) |
| Seat Height | 810mm (31.9″) |
| Dry Weight | 220kg (485 lbs) |
| Fuel Tank Capacity | 12 Liters (3.17 US Gallons) |
| Cargo Capacity | Front Rack: 20kg / Rear Rack: 45kg |
| Dimensions | 1940 × 1050 × 1040mm (76.4 × 41.3 × 40.9″) |

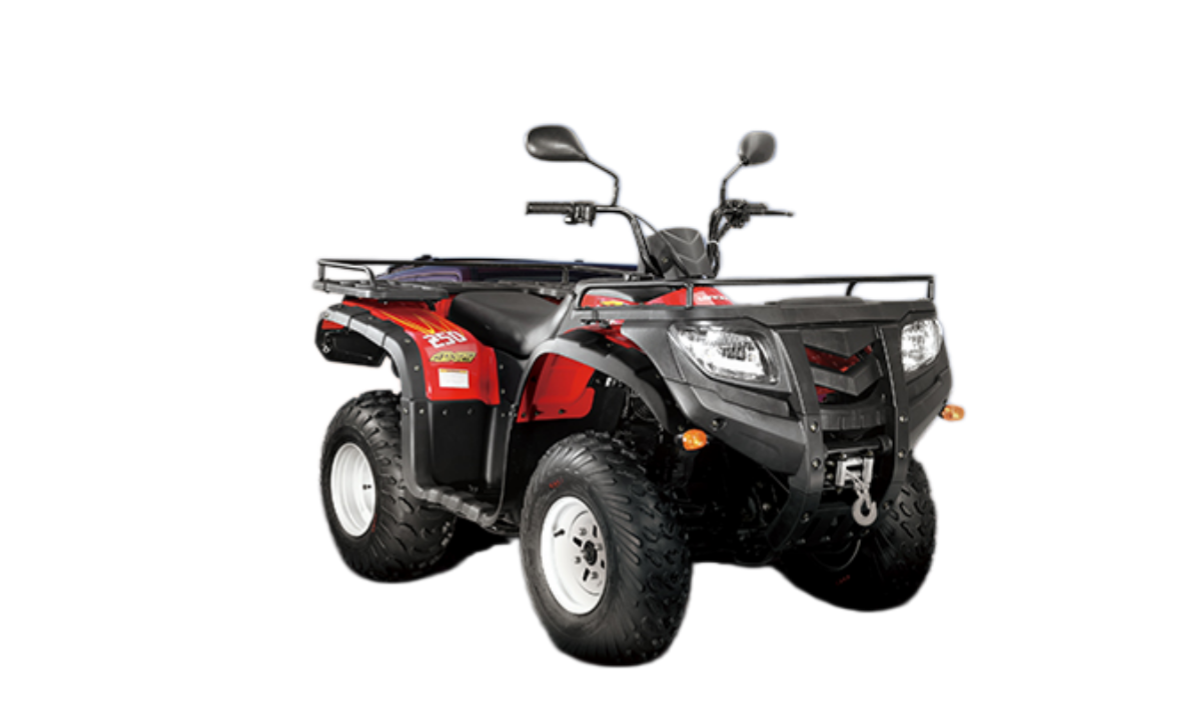

The LX250ATV-F is a thoughtfully engineered gateway to off-road recreation—where approachable performance meets uncompromising safety for riders aged 16+. Its torque-optimized 229cc OHV engine delivers smooth, predictable power delivery with a broad powerband that forgives beginner throttle inputs while maintaining sufficient grunt for two-up trail riding or light property maintenance tasks. The automatic CVT transmission features simplified gear engagement (Hi/Lo/N/R) with tactile feedback to prevent accidental shifting—critical for new riders developing muscle memory on uneven terrain.
Safety isn’t an add-on but engineered into every interaction:
✅ Progressive Speed Management: Three-stage electronic limiter (10/25/45 km/h) adjustable via parental control key
✅ Confidence-Building Geometry: 28° steering lock angle prevents over-rotation, while 710mm seat height enables flat-footed stops on inclines
✅ Anti-Sway Dynamics: 1,210mm wheelbase with centralized battery placement reduces fishtailing during panic braking
✅ Progressive Speed Management: Three-stage electronic limiter (10/25/45 km/h) adjustable via parental control key
✅ Confidence-Building Geometry: 28° steering lock angle prevents over-rotation, while 710mm seat height enables flat-footed stops on inclines
✅ Anti-Sway Dynamics: 1,210mm wheelbase with centralized battery placement reduces fishtailing during panic braking
The cockpit prioritizes intuitive operation for developing riders:
• Grip-Optimized Controls: Rubber-coated levers with 30% reduced pull force, color-coded ignition positions (Red=Off/Yellow=Run/Green=Start)
• Visual Feedback System: High-contrast LCD showing speed/RPM in 150mm font size, with flashing maintenance reminders 50 hours before service
• Emergency Preparedness: Integrated storage compartment housing first-aid kit mounts and emergency whistle in handlebar crossbar
• Grip-Optimized Controls: Rubber-coated levers with 30% reduced pull force, color-coded ignition positions (Red=Off/Yellow=Run/Green=Start)
• Visual Feedback System: High-contrast LCD showing speed/RPM in 150mm font size, with flashing maintenance reminders 50 hours before service
• Emergency Preparedness: Integrated storage compartment housing first-aid kit mounts and emergency whistle in handlebar crossbar
Durability meets practicality through intelligent design choices:
✨ Weather-Ready Electrical System: Fully sealed ignition coil and spark plug boot prevent misfires during creek crossings
✨ Maintenance Transparency: Transparent oil reservoir with fill-level window eliminates dipstick confusion
✨ Growth-Adaptive Platform: Adjustable footpeg positions (3 settings) and handlebar height (50mm range) accommodate riders 150-185cm tall
✨ Weather-Ready Electrical System: Fully sealed ignition coil and spark plug boot prevent misfires during creek crossings
✨ Maintenance Transparency: Transparent oil reservoir with fill-level window eliminates dipstick confusion
✨ Growth-Adaptive Platform: Adjustable footpeg positions (3 settings) and handlebar height (50mm range) accommodate riders 150-185cm tall
