| Vehicle parameter | |
|---|---|
| Length x Width x Height (mm) | 5830×1740×2400 |
| Maximum/curb weight (kg) | 6550/4400 |
| Chassis brand | Dongfeng |
| Operating ability | |
|---|---|
| Effective volume of the container (m³) | 7 |
| Unloading cycle time (s) | ≤40 |
| Compression cycle time (s) | ≤30 |
| Feeding cycle time (s) | ≤20 |
| Vehicle performance | |
|---|---|
| Maximum gradient | ≥20% |
| Endurance mileage (km) | 300(equivalent speed method) |
| Power system | |
|---|---|
| Motor rated/peak power (kW) | 60/120 |
| Motor rated/peak torque (N·m) | 164/420 |
| Battery brand/capacity (kWh) | CATL/105.28 |

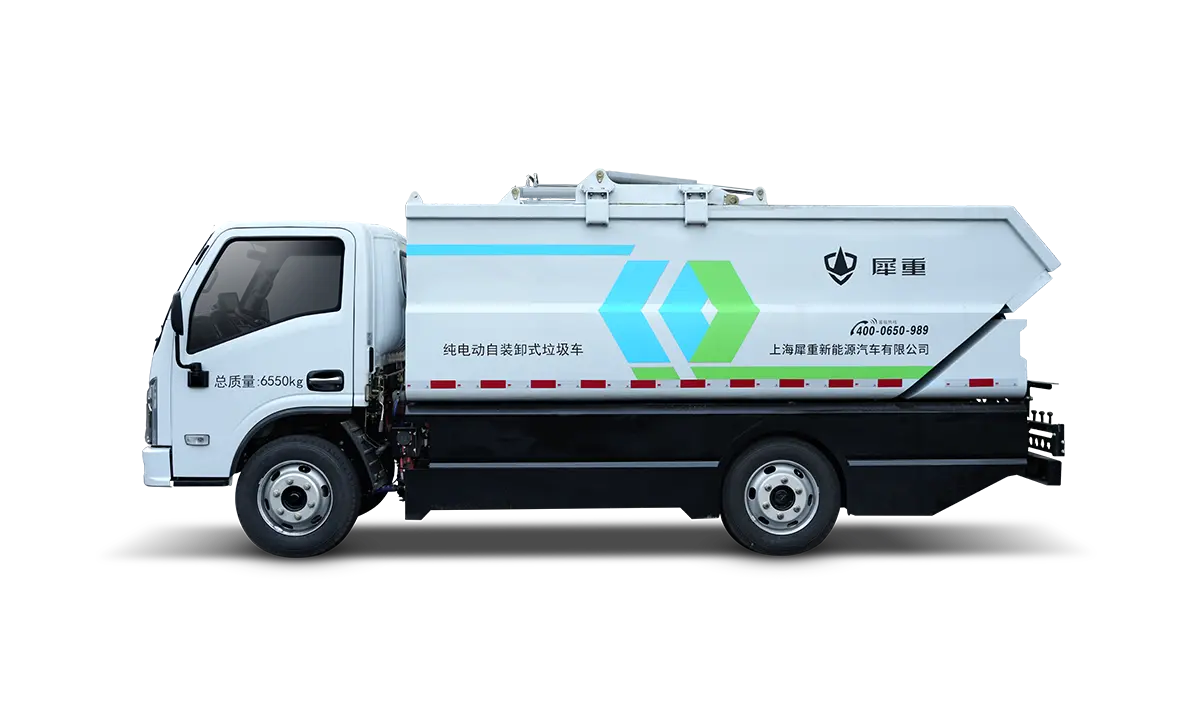

The 7T Electric Rear Loader Garbage Truck is a smart, zero-emission workhorse built for efficient daily waste collection in cities, towns, and densely populated communities. Also known as a hydraulic bin lift compactor, rear-loading refuse truck, or small compression garbage collector, it seamlessly combines bin lifting, feeding, and compression into one smooth, driver-operated workflow—eliminating the need for manual handling or extra crew.
This model is especially well-suited for residential neighborhoods, school zones, shopping streets, parks, and mixed-use districts where consistent, clean, and quiet service matters. Its compact size allows it to navigate tighter roads than larger trucks, while still offering greater container capacity than many vehicles in its class—thanks to an optimized modular design that maximizes usable space without compromising stability.

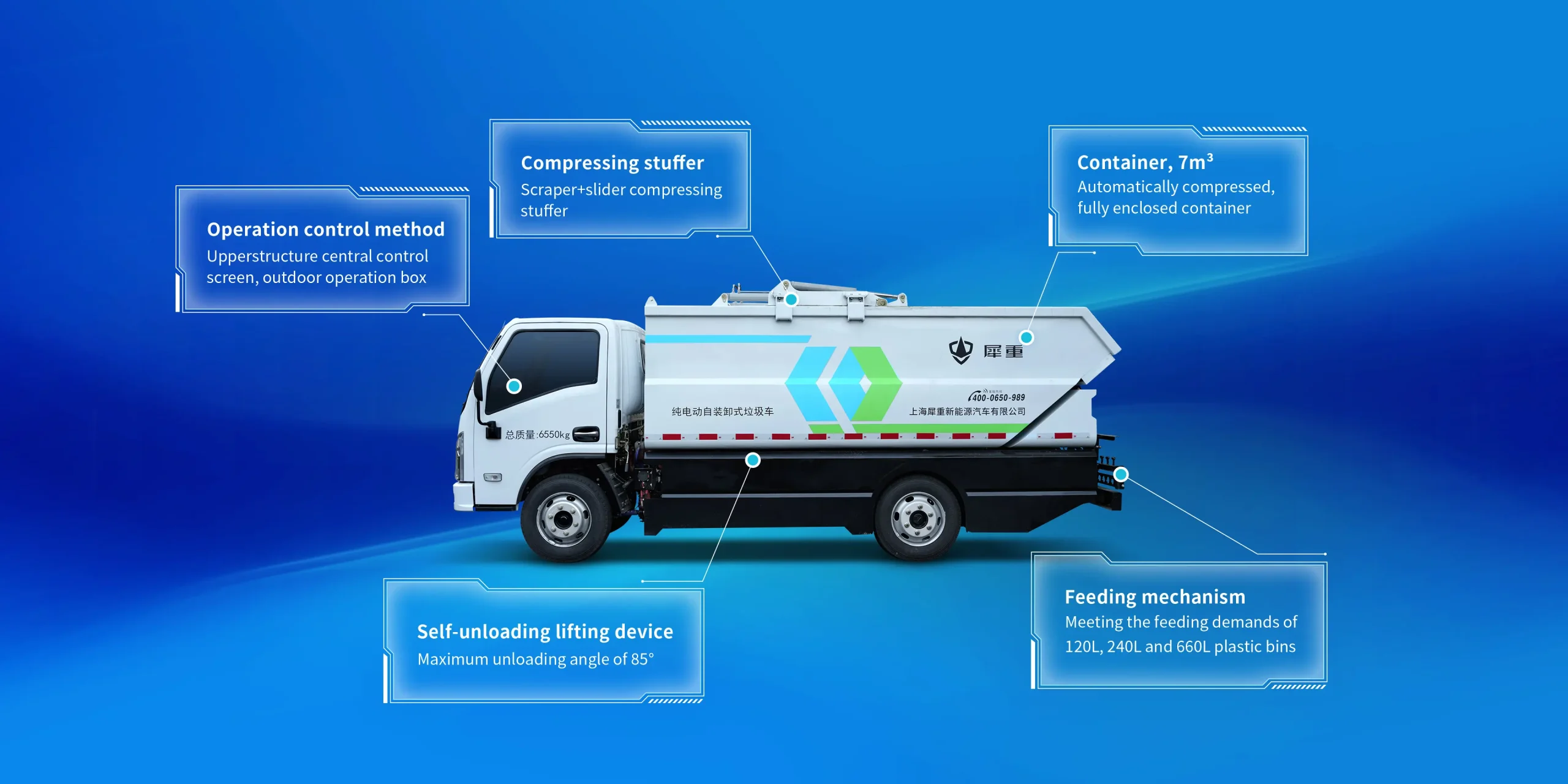

One of its standout features is the leak-resistant loading process: standard waste bins are lifted vertically before being gently tipped into the hopper, minimizing spills. Once inside, the waste is automatically compressed to increase payload density, reducing the number of trips to transfer stations and lowering overall operating costs.
The entire system is designed with operator convenience and public safety in mind. Features like voice prompts during operation, emergency stop buttons, and electrical interlocks help prevent accidents, while the fully sealed body ensures no garbage or liquids escape during transit—keeping streets clean and odor-free.
